Product Description

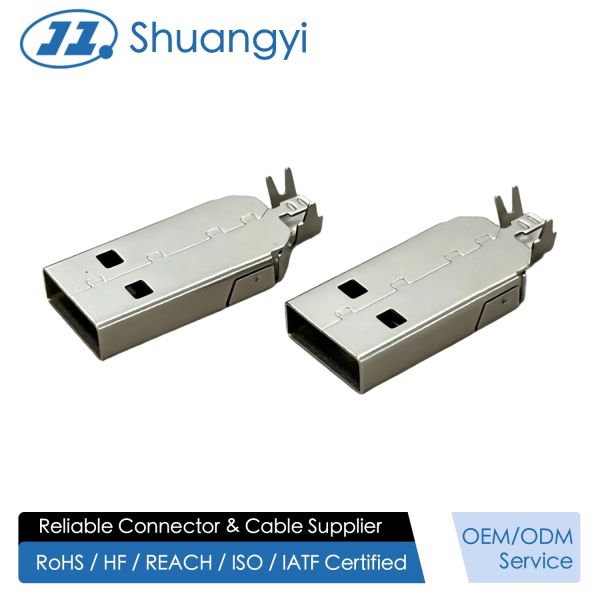

This USB 2.0 AM 2-Piece Housing Connector features a robust stamped-metal shell with ≥80u’’ nickel plating for enhanced corrosion resistance, stable conductivity, and long-term durability. Designed for wire-soldering cable assemblies, it supports reliable electrical and signal transmission in power supply devices, consumer electronics, chargers, servers, and small appliances.
The connector provides strong clamping force and high-strength structure, ensuring secure cable retention during frequent plugging, bending, or vibration. Its compatibility with customized cable ODs makes it suitable for OEM/ODM wiring harness production and high-volume assembly lines.
| Parameter | Specification | | Product Type | USB A Female 180° Wiring-Type Protective Shell Connector | | Structure | Two-Piece Welded Cable Housing | | Material | SPCC Steel, ≥0.30 mm | | Plating | Nickel plating 80U" (corrosion-resistant) | | Surface Treatment | No burrs, scratches, dents | | Orientation | 180-degree straight type | | Application | USB power/data cable assembly | | Compliance | RoHS compliant | | Salt Spray Test | 12 hours minimum | | Tolerance | ±0.10 mm / ±0.20 mm depending on dimension | |
Applications
Power supply cable assemblies
Consumer electronics (chargers, hubs, adapters)
Automotive wiring & infotainment systems
Server and industrial electronic equipment
Data and power transmission cables
Custom wire harness production for OEM/ODM
Precautions
Ensure cable OD and wire gauge match the connector housing design for proper crimping and strain relief.
Follow correct soldering temperature to avoid damaging plating or shell deformation.
Keep connectors dry and clean before assembly to maintain electrical performance.
Avoid excessive pulling or twisting of the cable during use.
Store in a dry environment to preserve plating quality.
|
|
